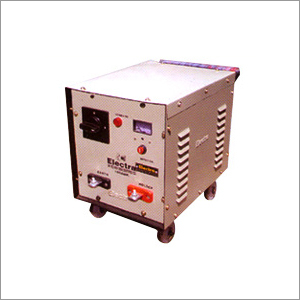

Stepless Arc Welding Machines
Stepless Arc Welding Machines
Stepless Arc Welding Machines
Welding machines are immensely used in various industrial sectors. With a huge experience in this welding technology, our organization, with its high emphasis on quality and continual product innovation has earned a dignified reputation in both the domestic and overseas markets. ISO 9001:2000 certified manufacturer and exporter offers all types of the latest technology welding machines. With below given specifications Stepless Arc Welding Machines offered by us are available.
Technical Specification
| S.No. |
Model - KTAC |
250 Amps |
300 Amps |
400 Amps |
600 Amps |
| 1 |
Supply Voltage |
220 VAC |
220/415 VAC |
415 VAC |
415 VAC |
| 2 |
Phase |
1 |
1/2 |
1/2 |
1/2 |
| 3 |
Frequency |
50 HZ. |
50 HZ. |
50 HZ. |
50 HZ. |
| 4 |
Cooling |
Natural |
Forced Air |
Forced Air |
Forced Air |
| 5 |
Insulation Class |
'H' |
'H' |
'H' |
'H' |
| 6 |
Switch Recommended |
40 A |
60 A |
60 A |
60 A |
| 7 |
Open Circuit Voltage |
65 VAC |
65 VAC |
80 VAC |
80 VAC |
| 8 |
Range of Current |
30-200 A |
40-300 A |
60-400 A |
60-600 A |
| 9 |
Max. Elect. Size (Recom) |
3.15 mm |
4.0 mm |
5.0 mm |
6.3 mm |
| 10. |
Weight of Machine |
55 K.G |
75 K.G |
105 K.G |
155 K.G |
| 11. |
Dimensions (inches) (Approx) |
15 x 15 x 11 |
20 x 17 x 27.5 |
20 x 17.5 x 28 |
32 x 20 x 19 |
