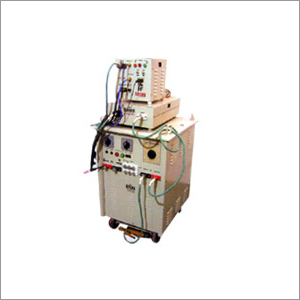

AC / DC TIG Welding Machine

AC / DC TIG Welding Machine
AC / DC TIG Welding Machine
Product Code : 14
Product Description

Being a client-oriented organization of this domain, we are importing and exporting superior quality TIG Welding Machine. Offered range of welding machines is manufactured by our engineers employing advanced tools, equipment and modern technologies. Further, to dispatch defect-free TIG Welding Machine of AC & DC Type, our quality controllers carefully test it on various pre-set parameters. We are offering these welding machines to the clients at industry leading prices.

H.F. Unit:

  • Gas flow control through Solenoid value for economy in consumption of costly Argon gas
  • Automatic H.F. cut off after arc ignition during D.C. Tig welding
  • Water circulatory unit fitted for water cooled torches

D.C. Suppressor Unit:

Specially designed bank of capacitors to suppress the D.C. component while A.C. TIG welding of aluminum for better stability of arc

AC / DC TIG (Argon)

Model H.F.Unit Supressor Unit
Input Supply 220 VAC A.C.Power Source with OCV-85-90 V For Aluminium Welding
Phase Single -
Frequency 50 HZ
Weight (KG) 21
Cooling Air/Water

Technical Specification
S.No. - 400 Amps 600 Amps
1 Supply Voltage 380-440 VAC 380-440 VAC
2 Phase 2 2
3 Frequency 50 HZ. 50 HZ.
4 Cooling Forced Air Forced Air
5 Insulation Class 'H' 'H'
6 Max. Welding Current @60%Duty Cycle 400 Amps 600 Amps
7 Max. Welding Current @100% Duty Cycle 310 Amps 450 Amps
8 Open Circuit Voltage 80-90 VDC 80-95 VDC
9 Current Control Stepless Stepless
10. Max. Elect. Size(Recomm.) 4.0mm 4.0mm / 6.3 mm
